PVC Insulated Wire |
Standard: UL 758,1581 CSA C22.2 NO.210.2
|
|
|

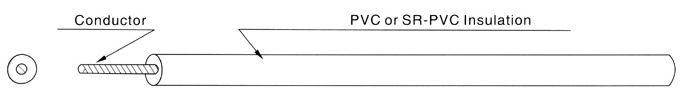

| ■ CONSTITUTION： |
|
 |
|
| PRODUCT DESCRIPTION |
|
| ● |
Rated voltage: 30V,Rated temperature:80℃ |
|
| ● |
Tinned or bare,stranded or solid copper conductor,50AWG min. |
|
| ● |
Color-coded PVC or SR-PVC insulation |
|
| ● |
Passes UL VW-1 & CSA FT1vertical flame test |
|
| ● |
Uniform insulation thickness of wire to ensure easy stripping and cutting |
|
| ● |
Resistant to acid,alkali,oil,moisture and fungi，conforming RoHS |
|
|
|
|
| APPLICATION |
|
| For general purpose internall wiring of electronic and electrical equipment |
|
|
|
|
|
UL 1571 80℃ 30V |
Conductor
Type |
Conductor |
Insulation |
Max Resistance
at 20℃ |
Min Insulation Resistance,
at20℃ |
Dielectric Strength AC 1 min |
Standard Length |
Spec |
|
Dia. |
Nom.Thick. |
Nom.Dia. |
AWG |
No/mm |
mm |
mm |
mm |
Ω/km |
MΩ.Km |
V |
Ft(M) |
Stranded
Conductor |
30 |
7/0.10 |
0.30 |
0.20 |
0.7 |
354.24 |
10 |
500
|
2000
(610)
|
28 |
7/0.127 |
0.38 |
0.25 |
0.88 |
223.75 |
26 |
7/0.16 |
0.48 |
0.25 |
0.98 |
139.73 |
24 |
11/0.16 |
0.61 |
0.25 |
1.11 |
93.3 |
22 |
17/0.16 |
0.76 |
0.30 |
1.36 |
55.0 |
20 |
26/0.16 |
0.94 |
0.35 |
1.64 |
34.6 |
Single
Conductor |
30 |
1/0.32 |
0.32 |
0.25 |
0.82 |
227.39 |
500 |
2000
(1610) |
28 |
1/0.404 |
0.404 |
0.25 |
0.90 |
142.79 |
26 |
1/0.511 |
0.511 |
0.25 |
1.01 |
89.39 |
22 |
1/0.643 |
0.643 |
0.30 |
1.24 |
54.3 |
20 |
1/0.813 |
0.813 |
0.35 |
1.51 |
33.9 |
Overall
Tinned |
26 |
7/0.16 |
0.48 |
0.25 |
0.98 |
139.73 |
24 |
7/0.203 |
0.61 |
0.25 |
1.11 |
86.0 |
22 |
7/0.254 |
0.76 |
0.30 |
1.36 |
54.8 |
20 |
7/0.32 |
0.96 |
0.35 |
1.66 |
34.2 |
|
|
