RVVP RVVP1多芯屏蔽電纜

RVVP、RVVP1

多芯屏蔽電纜

Multi-Conductor Shielded Cable

標準 Standard: JB 8734.5-1998

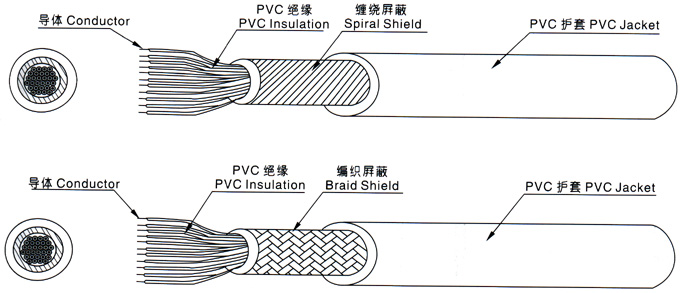

■ 構造 CONSTITUTION：

■ 產品說明

●	使用標準厚度、易剝、易裁
●	具有抗酸堿、耐油、防潮、防霉、環保等特性

PRODUCT DESCRIPTION

●	Rated voltage: 00/300V，Rated temperature:70℃
●	Stranded, bare copper conductor,0.08-1.5mm²
●	PVC insulation
●	Tinned or bare copper wire sporal or braid shield
●	PVC jacket
●	Passes GB 12666.2 vertical flame test

●	Uniform insulation thickness of wire to ensure easy stripping and cutting
●	Resistant to acid,alkail,oil,moisture and fungi,conform RoHS

■ 應用

適用于電器、儀表和電子設備及自動化裝置用連線

APPLICATION

For internal wiring of vehicles meters circuits and electrical equipment in high temperature condition

RVVP、RVVP1 70℃ 300/300V
型號 Style	異體 Conductor			芯數Cores	絕緣 Insulation		屏蔽Shield	護套 Jacket			較大異體電阻 Max Resis- tance at 20℃	*小絕緣電阻 Max Insul- ation Resis- tance at 70℃	耐電壓 Dielec- tric Strength AC 5 min	標準長度Standard Length
	標準截面 Nom. Area	線數/線徑	直徑 Dia		標稱厚度 Nom. Thick	標稱外徑 Nom. Dia.	纏繞/編織 Spiral/ Braid	標稱厚度 Nom. Thick.	標稱外徑 Nom. Dia.	較大外徑 Max. Dia
	mm²	No./mm	mm	No.	mm	mm	mm	mm	mm	mm	Ω/Km	MΩ.Km	V	(M)
RVVP1	0.08	7/0.12	0.37	1	0.4	1.17	0.10	0.4	2.20	2.5	247.0	0.018	1500	500
				2			0.10		3.40	4.2
	0.12	7/0.15	0.46	1	0.4	1.26	0.10	0.4	2.30	2.6	158.0	0.016	1500
				2			0.10	0.6	4.00	4.9				300
				3			0.10		4.10	5.1
				4			0.15		4.60	5.8
				5			0.15		5.00	6.2
	0.2	12/0.15	060	1	0.4	1.40	0.10	0.4	2.40	2.8	92.3	0.016	1500	500
				2			0.10	0.6	4.20	5.3				300
				3			0.15		4.60	5.8
				4			0.15		4.90	6.2
				5			0.15		5.30	6.7
	0.3	16/0.15	0.69	1	0.5	1.69	0.10	0.4	2.70	3.1	69.2	0.014	1500	500
				2			0.15	0.6	4.90	6.2				300
				3			0.15		5.20	6.5
				4			0.15		5.60	7.0				200
				5			0.15		6.10	7.6
RVVP	0.08	7/0.12	0.37	1	0.4	1.17	16/3/0.10	0.4	2.40	2.9	247.0	0.018	1500	500
				2			16/4/0.10		3.60	4.2				300
							16/4/0.10		2.4×3.6	2.9×4.2
	0.12	7/0.15	0.46	1	0.4	1.26	16/3/0.10	0.6	2.50	3.0	158.0	0.016	1500	500
				2			16/4/0.10		4.20	4.9				300
							16/4/0.10		2.9×4.2	3.4×4.9
				3			16/4/0.10		4.40	5.1
				4			16/4/0.15		4.90	5.8
				5			16/4/0.15		5.30	6.2
				6-7			16/4/0.15		5.60	6.6				200
				10			16/5/0.15		6.90	8.1
				12			16/6/0.15		7.10	8.3
	0.2	12/0.15	0.60	1	0.4	1.40	16/4/0.10	0.4	2.60	3.2	92.3	0.013	1500	500
				2			16/4/0.10	0.6	4.40	5.3				300
							16/4/0.10		3.0×4.4	3.6×5.3
				3			16/4/0.15		4.90	5.8
				4			16/4/0.15		5.20	6.2
				5			16/4/0.15		5.60	6.7				200
				6-7			16/4/0.15		6.00	7.2
				10			16/4/0.15	0.8	7.80	9.3
				12			16/4/0.15		8.10	9.6				150
